Portable Vibration Analyzer

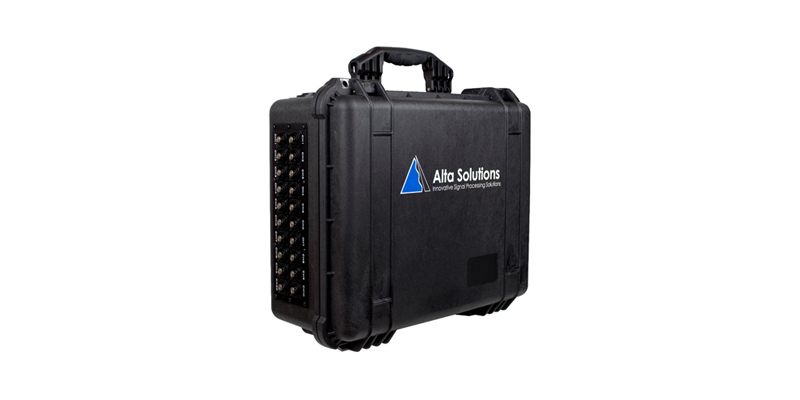

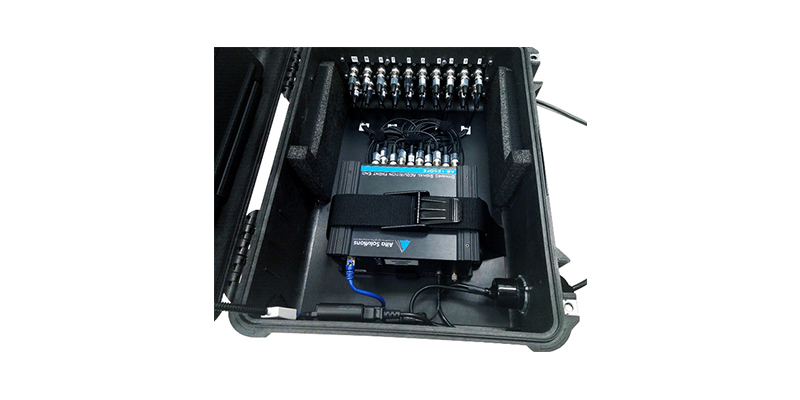

The AS-5050 case was specially designed to allow the AS-1250FE hardware to be deployed with a laptop or tablet in the field in area where the environment is not friendly to analytical equipment. The AS-1250 is securely mounted to a mounting plate by a hold down strap. A BNC cable bundle provides the connections from the AS-1250 to the bulkhead BNC connectors for a compact and portable vibration analyzer.

portable-vibration-analyzer_Gallery_Image_1a

as1250fe_Gallery_Image_5

portable-vibration-analyzer_Gallery_Image_2

portable-vibration-analyzer_Gallery_Image_3

portable-vibration-analyzer_Gallery_Image_4

portable-vibration-analyzer_Gallery_Image_5

portable-vibration-analyzer_Gallery_Image_6

Features

• Organize AS-1250, Laptop, & Accessories within 1 case

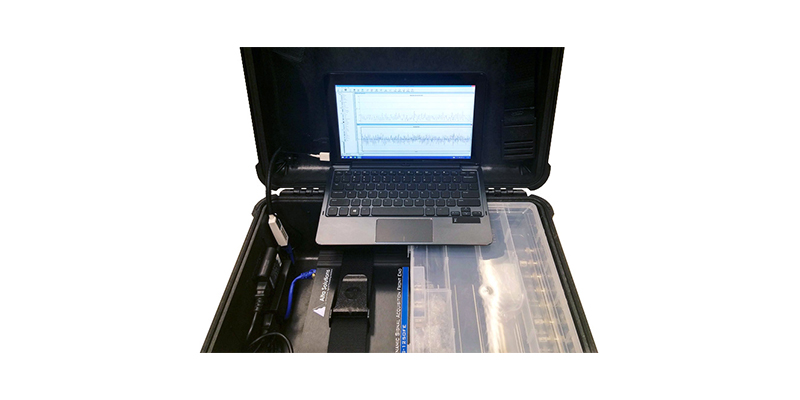

• Securely Mount AS-1250FE & Laptop Computer

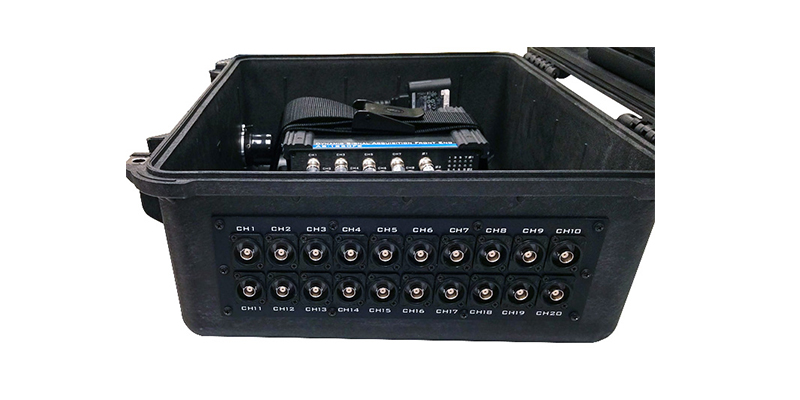

• 1250 Inputs Connected to Exterior Bulkhead BNC’s

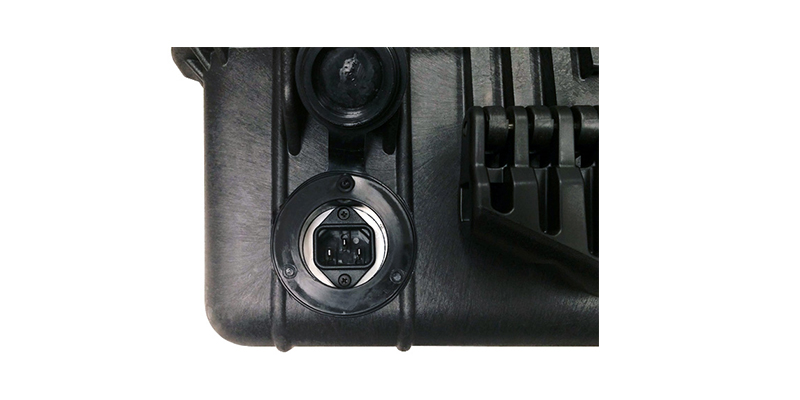

• Water Resistant thru case Electrical Connections
• All Necessary Interior Wiring and Connections
• Allows for Rapid Connection and Data Acquisition

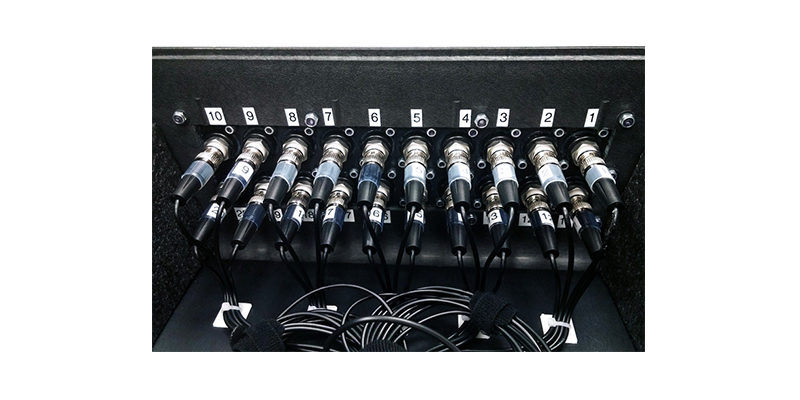

• Clearly Labelled Signal Inputs and Internal BNC Cables
• Accessory Case for BNC T’s, Banana Pigtails, etc

Documentation

• Data Sheet – AS-5050 Field Instrument Case

•  Data Sheet – AS-1250FE Data Acquisition Front-End
